PVC/LSZH Insulated & PVC/LSZH Sheathed Switchboard Cables to DIN VDE 0815
J-Y(St)Y…2X0.6 Lg J-Y(St)Y…2X0.8 Lg
J-H(St)H…2X0.6 Lg J-H(St)H…2X0.8 Lg
Application
The installation cables are used for telephone and signal transmission and suitable for permanent installation on and under plaster in dry and damp rooms and for permanent installation on external walls. They are designed to handle low frequency analogue or digital signals for flexible installation.
Standards
• DIN VDE 0815

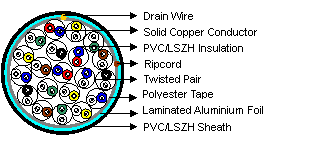

Construction
Conductors
Solid annealed bare copper sized 0.6/0.8mm as per VDE 0295/IEC 60228 Class 1
Insulation
PVC YI1 type to DIN VDE 0207-4. LSZH compound can be offered as option
Twisted Pairs
Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk
Cabling Element
Twisted Pairs
Cable Core Assembly
The twisted pairs are stranded to cable core in layers
Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to
sheathing.
Screen
Laminated aluminium foil is provided for fully enclosing the core with an overlap
Sheath
PVC YM1 type to DIN VDE 0207-5. LSZH sheath can be offered as option
Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal
Drain Wire (optional)
Drain wire with a diameter of 0.4mm is provided in cables up to 10 pairs. Drain wire with a diameter of 0.6mm
is provided in cables with more than 10 pairs
Type Codes
J- | Installation Cable |
Y | Polyvinylchloride (PVC) |
H | Low Smoke & Zero Halogen |
(St) | Static Shield |
Lg | Stranded in layers |
Electrical Properties
Nominal Conductor Diameter |
mm |
0.6 |
0.8 |
0.6 |
0.8 |
VDE CODE |
|
J-Y(St)Y |
J-Y(St)Y |
J-H(St)H |
J-H(St)H |
Conductor Size |
mm2 |
0.283 |
0.5 |
0.283 |
0.5 |
Ω/km |
63 |
34.6 |
63 |
34.6 |
|
Ω/km |
130 |
73.2 |
130 |
73.2 |
|
MΩ.km |
100 |
100 |
100 |
100 |
|
Maximum Average Attenuation @0.8KHz |
dB/km |
1.7 |
1.1 |
1.7 |
1.1 |
nF/km |
100 |
100 |
120 |
120 |
|
Maximum Capacitance Unbalance K1 |
pF/100m |
300 |
300 |
300 |
300 |
Maximum Working Voltage Peak Value |
V |
300 |
300 |
300 |
300 |
Insulation Material |
|
PVC |
PVC |
LSZH |
LSZH |
Sheath Material |
|
PVC |
PVC |
LSZH |
LSZH |
Nominal Insulation Thickness |
mm |
0.3 |
0.4 |
0.3 |
0.4 |
Nominal Insulated Conductor Diameter |
mm |
1.2 |
1.6 |
1.2 |
1.6 |
* In Cables up to 4 pairs 120nF/km
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter
Color Code
In 2 pair- cables:
Pair 1: a-wire red b-wire black
Pair 2: a-wire white b-wire yellow
In cables with 4 and more pairs:
a-wire of the 1st pair in each layer red, in all other pairs white
b-wire blue, yellow, green, brown, black in repeated sequence counting direction from the outside to the inside.
Dimensions And Weight
VDE CODE: J-Y(St)Y …x2x0.6/0.8 Lg
Cable Code | Number of Pairs |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
0.6mm Conductor, 1.2mm Insulated Wire | |||||
T815J-Y(St)Y-Lg-1P06 |
1 |
0.3 |
1.0 |
4.8 |
30 |
T815J-Y(St)Y-Lg-2P06 |
2 |
0.3 |
1.0 |
5.0 |
40 |
T815J-Y(St)Y-Lg-3P06 |
3 |
0.3 |
1.0 |
6.3 |
50 |
T815J-Y(St)Y-Lg-4P06 |
4 |
0.3 |
1.0 |
6.5 |
60 |
T815J-Y(St)Y-Lg-5P06 |
5 |
0.3 |
1.0 |
7.2 |
70 |
T815J-Y(St)Y-Lg-6P06 |
6 |
0.3 |
1.0 |
7.5 |
80 |
T815J-Y(St)Y-Lg-8P06 |
8 |
0.3 |
1.0 |
8.0 |
90 |
T815J-Y(St)Y-Lg-10P06 |
10 |
0.3 |
1.0 |
10.0 |
110 |
T815J-Y(St)Y-Lg-12P06 |
12 |
0.3 |
1.0 |
10.2 |
130 |
T815J-Y(St)Y-Lg-14P06 |
14 |
0.3 |
1.0 |
10.5 |
145 |
T815J-Y(St)Y-Lg-16P06 |
16 |
0.3 |
1.0 |
11.0 |
160 |
T815J-Y(St)Y-Lg-20P06 |
20 |
0.3 |
1.0 |
12.0 |
190 |
T815J-Y(St)Y-Lg-24P06 | 24 | 0.3 | 1.0 | 13.0 | 220 |
T815J-Y(St)Y-Lg-30P06 | 30 | 0.3 | 1.2 | 14.0 | 280 |
T815J-Y(St)Y-Lg-40P06 | 40 | 0.3 | 1.2 | 15.0 | 350 |
T815J-Y(St)Y-Lg-50P06 | 50 | 0.3 | 1.2 | 17.0 | 430 |
T815J-Y(St)Y-Lg-60P06 | 60 | 0.3 | 1.2 | 19.0 | 500 |
T815J-Y(St)Y-Lg-80P06 | 80 | 0.3 | 1.4 | 21.0 | 640 |
T815J-Y(St)Y-Lg-100P06 | 100 | 0.3 | 1.4 | 24.0 | 850 |
0.8mm Conductor,1.6mm Insulated Wire |
|||||
T815J-Y(St)Y-Lg-1P08 | 1 | 0.4 | 1.0 | 6.0 | 40 |
T815J-Y(St)Y-Lg-2P08 | 2 | 0.4 | 1.0 | 7.0 | 60 |
T815J-Y(St)Y-Lg-3P08 | 3 | 0.4 | 1.0 | 8.5 | 80 |
T815J-Y(St)Y-Lg-4P08 | 4 | 0.4 | 1.0 | 9.0 | 100 |
T815J-Y(St)Y-Lg-5P08 | 5 | 0.4 | 1.0 | 9.5 | 120 |
T815J-Y(St)Y-Lg-6P08 | 6 | 0.4 | 1.0 | 11.0 | 140 |
T815J-Y(St)Y-Lg-8P08 | 8 | 0.4 | 1.0 | 11.5 | 170 |
T815J-Y(St)Y-Lg-10P08 | 10 | 0.4 | 1.2 | 13.2 | 220 |
T815J-Y(St)Y-Lg-12P08 | 12 | 0.4 | 1.2 | 14.2 | 250 |
T815J-Y(St)Y-Lg-14P08 | 14 | 0.4 | 1.2 | 15.0 | 280 |
T815J-Y(St)Y-Lg-16P08 | 16 | 0.4 | 1.2 | 16.0 | 320 |
T815J-Y(St)Y-Lg-20P08 | 20 | 0.4 | 1.2 | 17.0 | 380 |
T815J-Y(St)Y-Lg-24P08 | 24 | 0.4 | 1.4 | 19.0 | 460 |
T815J-Y(St)Y-Lg-30P08 | 30 | 0.4 | 1.4 | 20.8 | 560 |
T815J-Y(St)Y-Lg-40P08 | 40 | 0.4 | 1.4 | 23.0 | 710 |
T815J-Y(St)Y-Lg-50P08 | 50 | 0.4 | 1.6 | 26.0 | 900 |
T815J-Y(St)Y-Lg-60P08 | 60 | 0.4 | 1.6 | 28.0 | 1050 |
T815J-Y(St)Y-Lg-80P08 | 80 | 0.4 | 1.8 | 31.5 | 1400 |
T815J-Y(St)Y-Lg-100P08 | 100 | 0.4 | 2.0 | 33.0 | 1750 |
VDE CODE: J-H(St)H …x2x0.6/0.8 Lg
Cable Code | Number of Pairs | Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
0.6mm Conductor, 1.2mm Insulated Wire | |||||
T815J-H(St)H-Lg-2P06 |
2 |
0.3 |
1.0 |
8.0 |
65 |
T815J-H(St)H-Lg-4P06 |
4 |
0.3 |
1.0 |
10.0 |
100 |
T815J-H(St)H-Lg-6P06 |
6 |
0.3 |
1.0 |
11.0 |
117 |
T815J-H(St)H-Lg-10P06 |
10 |
0.3 |
1.0 |
12.0 |
155 |
T815J-H(St)H-Lg-20P06 |
20 |
0.3 |
1.0 |
15.0 |
270 |
T815J-H(St)H-Lg-30P06 |
30 |
0.3 |
1.2 |
17.0 |
322 |
T815J-H(St)H-Lg-40P06 |
40 |
0.3 |
1.2 |
18.0 |
408 |
T815J-H(St)H-Lg-50P06 |
50 |
0.3 |
1.2 |
20.0 |
491 |
T815J-H(St)H-Lg-60P06 |
60 |
0.3 |
1.2 |
21.0 |
573 |
T815J-H(St)H-Lg-80P06 |
80 |
0.3 |
1.4 |
24.0 |
756 |
T815J-H(St)H-Lg-100P06 |
100 |
0.3 |
1.4 |
27.0 |
917 |
0.8mm Conductor,1.6mm Insulated Wire | |||||
T815J-H(St)H-Lg-1P08 | 2 |
0.4 |
1.0 |
9.0 |
77 |
T815J-H(St)H-Lg-4P08 |
4 |
0.4 |
1.0 |
11.0 |
135 |
T815J-H(St)H-Lg-6P08 |
6 |
0.4 |
1.0 |
12.0 |
165 |
T815J-H(St)H-Lg-10P08 |
10 |
0.4 |
1.2 |
15.0 |
250 |
T815J-H(St)H-Lg-20P08 |
20 |
0.4 |
1.2 |
19.0 |
420 |
T815J-H(St)H-Lg-30P08 |
30 |
0.4 |
1.4 |
22.0 |
620 |
T815J-H(St)H-Lg-40P08 |
40 |
0.4 |
1.4 |
26.0 |
850 |
T815J-H(St)H-Lg-50P08 |
50 |
0.4 |
1.6 |
28.0 |
1000 |
T815J-H(St)H-Lg-60P08 |
60 |
0.4 |
1.6 |
30.0 |
1150 |
T815J-H(St)H-Lg-80P08 |
80 |
0.4 |
1.8 |
34.0 |
1550 |
T815J-H(St)H-Lg-100P08 |
100 |
0.4 |
2.0 |
38.0 |
1850 |
